Finishing A Horse

Nearly three months after initiating building the first components for the horse, and nearly five months after deciding to build this, I've reached the end. Last time on the Vortex'o'suck, I had finished the entirety of the horse's neck, with means to conceal the largest gaps resulting from neck articulation. All the pre-planning and well-documented work ended there. Now it's time to throw that all away and free-hand everything. Why? Because I have no plan from here on out!

With the neck mechanism built, I can figure out the envelope for the chest cavity to conceal the sections. This involved cutting away the chest cavity and replacing the scaffolding with some nice solid walls. Most of the thin strips of cardstock will remain to keep the structure, but thin areas like the chest were removed entirely. They have served their purpose.

Using an old technique of "build a pinata", by gluing strips of paper until a hollow shell is formed, I completed the chest cavity that houses the neck assembly and hides the gaps. This technique will be used for the rest of the horse from here on out, and was the single cause for the delay in completing the horse, since it's an unexact method and tedious to do.

 The upper assembly required a new cover. I peeled the previously built scaffolding away and formed a new cover. I opted for a double layer of card to ensure structural stiffness and to conceal join seams on the other side by hiding them between two layers.

 Here is the new cover, with the old scaffolding in place over it. The fore legs have been fleshed out with 110lb cardstock internally, and a single layer of magic card over it.

Building all the leg cover plates was annoying. I could wrap the entire body around with a layer of card like I did with the camel, but there were some sections that it wasn't feasible with due to the hinges. So, I decided to go with sets of mirrored cover plates to reduce the number of unique parts and to allow for somewhat easy assembly.

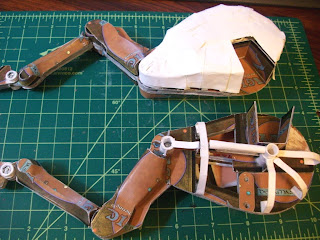

Once the wireframe support was constructed, more pinata building was in order. The opening on the side of the rear leg was added to account for the supports holding the rear legs in place. The rear leg assembly itself was a balance of form and function, as I could either go for a structural column between the legs, or remove it entirely and let the legs complete the shape themselves.

Some trimming later, and I built a dividing column for the rear legs. Some pillars were added to maintain strength, even though there should be zero interaction in the direction of the plates during normal operation. Figured it's a better option to do this now than deal with depressions in the card face later.

 With the rear structure completed and the front skin done, it was time to make the rest of the body. First off, I ended up breaking my personal rule of not using lands for construction. You can see the outer shell made of some swamps. They came in some free intro packs and I was actually dwindling on chaff cards. Not like anyone's going to care if I use some Tenth Edition swamps. People already assume I'm using lands anyways. I need to save the most horrible of cards for other projects. The skin was reinforced in some areas with two or three layers of card. Damage was a concern, and repair would be difficult. I am keeping the templates for all the free-handed sections in the event I need to redo sections, but I'm hoping I won't need to.

 After assembling the last remaining parts of the horse, I added a tail (which I had never made provisions for in the first place) by putting two twisted strands of black electrical wire flanked by some black wig hair. I probably need more hair. The wire's there so I can attempt to put the tail in dynamic poses, which so far doesn't work.

 Adding all the skin and remaining sections used up a total of 69 cards. With the previous sum of 246 cards, I'm slightly over the original budget with 315 cards. Still not bad. Is it worth building a 1:6 scale horse out of cards? Totally not. I'd recommend buying an artist's reference model if you want it as a reference, and I'd recommend buying a professional made one for $99-300 that isn't made of flammables and cellulose. Although neither of those lets you have silly poses with 1:6 scale figures.

If you're interested in the plans for the horse, drop a comment or send a message. Otherwise, I won't bother posting them. They need some clean up anyways.
